1.2m Gate-Makers for Verti-BARR Fence Panels - Gate Converters/ Gate Styles to Transform a 1.2m High Verti-Verti-BARR Batten Fence Panel into a Custom-Width Gate - PEARL WHITE
- Availability:
- IN STOCK
- Pick-up, Shipping or Packing:
- Calculated at Checkout
- NEED ASAP PICKUP? (1-3 HOURS):
- Text your order number and ideal pickup time to 0412 736 242 (M-F 8-3 AEST)
- ASAP IN-STOCK GUARANTEE:
- If it's not all in stock, you may cancel for a full refund
- Stocked At:
- Brisbane (Virginia); Gold Coast (Molendinar); Newcastle (Cardiff); Melbourne (Dandenong or Derrimut); Adelaide (Kilburn) and Perth (Jandakot)
- RESERVE & COLLECT OPTION ($14):
- Order now, collect later—anytime within 30 days or DIRECT DELIVERY ($159-$229) in 3-10 days in the stocking warehouse delivery zone
- Colour:
- Satin Black
Description

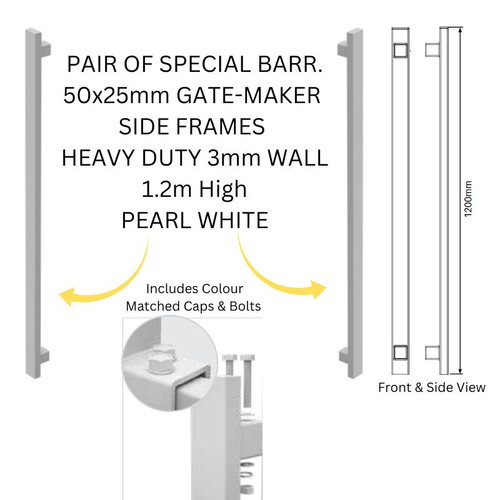

Verti-BARR GATE CONVERTER/ GATE-MAKER KIT - Suits 1200mm High Verti-BARR Batten Pool Safe Fence Panels - Powder Coated Pearl White - Gate Maker Kit includes a Pair of Special 50x25mm, 3mm Heavy Wall Thickness Aluminium Gate Styles/ Side Frames (left & right side styles to make 1 x gate) and includes colour matched fixing bolts/nuts, plus caps.
Do you need 1.2m Pearl White Aluminium Gates in lots of single gate sizes all the way up to a 4.5m Driveway Double Gate?
This 1.2m high Pearl White Gate Style Kit easily converts a standard 1.2m High Verti-BARR Batten fence panel into a custom-width side, front or pool safe gate.
Note: For pool gates because they are spring-loaded, try to keep your gate size to 1.2m wide or less.
- Easily converts standard Verti-BARR fence panels into any size pedestrian gates.
- Just cut fence panel to size (allowing at least 42mm gap each end and then slip on the special gate kit side frames.
- Easily converts standard Verti-BARR fence panels into Extra Wide Double Gates. (NOTE: Double Gates are Suitable for use in non-Pool Safe Applications only.)
- Suits 1200 high Pearl White Verti-BARR Pool Safe Fence Panels
- Bolt/nuts are included and are colour matched, simply insert Gate Makers/ Gate Converter Side Frame Styles on both sides and fix off with colour-matched bolts provided.
- Gate converter stiles are 50x25mm profile to match Fence Panel Battens.
- Nylon Plastic Top caps are included and pre-installed.
- Baked-on genuine Interpon powder coating finish.
- Sold as a pair of Verti-BARR Gate Side Frames/ Gate Styles Kit. (for left & right side of gate)
Determining the Maximum Gate Width Size for 1.2m High Verti-BARR Batten Fence Panels when converted into a gate (Using a full length fence panel)
If you're wondering about the maximum gate size for your 1.2m high Verti-BARR Batten Gate, here's a simple equation to help you arrive at the answer:
- Start with the fence panel width of 2205mm
- Add 50mm (total for a pair of 25mm wide gate styles)
- The Maximum actual gate width will be 2255mm. (2205mm + 50mm)
- The Gate opening gap between fence posts (unless you're using different gate hardware) will be 2295mm (2255mm + 40mm for Gate Hardware)
To determine the maximum gate opening sizes for single and double gate arrangements for 1.2m High Verti-BARR Panels, you can follow this equation: (unless you're using different gate hardware).
Add 40mm for hinge and latch gaps for single gates. For double gates, add 60mm for hinge sides and latch gap. The maximum gate opening size for a single gate is 2295mm (2255mm + 40mm), and for a double gate is 4570mm (2255mm + 2255mm + 60mm).
Please Note: Recommended Pool Gate Size
It is recommended to keep the gate size 1.2m wide or less. This is because the wider the gate, the harder the spring-loaded hinges will slam it shut. Some customers, however, have gone up to 1.6m wide to accommodate a ride-on mower etc., accessing their pool area. If you do need to do this, we recommend that it be an extra gate that is not used regularly.
Discover the Benefits of the Verti-BARR Batten Fencing Custom Width Gate Maker Kit
- No more costly custom-made batten gates - create your own custom-sized Verti-BARR Batten gate with ease and save money!
- Don't worry about determining the exact custom-width Aluminium batten gate you need ahead of time. Simply create a gate of any desired width on the day of installation!
- The Batten Fence Gate-Maker Side Frame Kit is designed to convert an Aluminium Home and Pool Safe Verti-BARR Fence Panel into a gate, allowing for custom sizing up to 2255mm wide.
- To use, cut the horizontal rails of the Verti-BARR Vertical Batten fence panel to the desired size and attach the pair of gate styles/side frames. Congratulations! You have successfully converted a fence panel into a gate. You are now a gate fabricator!
NOTE: When cutting the fence panel to size, make sure to leave at least 42mm of horizontal rail sticking out on each end for attachment of the Mate Maker Side Frames.
To summarise the benefits: The Verti-BARR Custom Width Gate Maker Kit/Gate Maker Side Frames are designed to make creating a custom-sized Verti-BARR Batten gate easier than ever before. With the ability to make gates up to 2255mm wide without the need for expensive custom-made options, this kit saves time and hassle. Plus, it allows for on-the-day sizing!

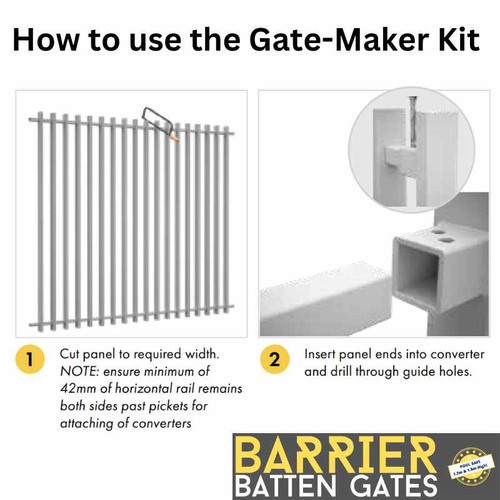

Step-by-Step Guide: How to Install Verti-BARR Gate Makers Kit/Gate Converters and transform a Verti-BARR Vertical Batten fence panel into a gate!
If you're searching for a way to create a customised width aluminium pool fence gate, then follow these three simple steps to install the Verti-BARR Gate Makers Kit/Gate Converters and convert your Verti-BARR Vertical Batten fence panel into a gate:
Before you begin, don't forget to purchase Verti-BARR Batten Fence Panels to use with the Gate Maker Side Frame Kit.
- Cut the panel to the required width, but keep in mind to leave a minimum of 42mm of horizontal rail on both sides for attaching the converters to the fence panel rails.
- Insert the panel ends into the converters and drill through the guide holes.
- Secure both converters with the provided nuts and bolts to complete your DIY custom-width Verti-BARR Batten Aluminium Pool Safe Gate!
With these simple steps, you can easily construct your custom-width aluminium pool fence gate using the Verti-BARR Gate Makers Kit/Gate Converters.
